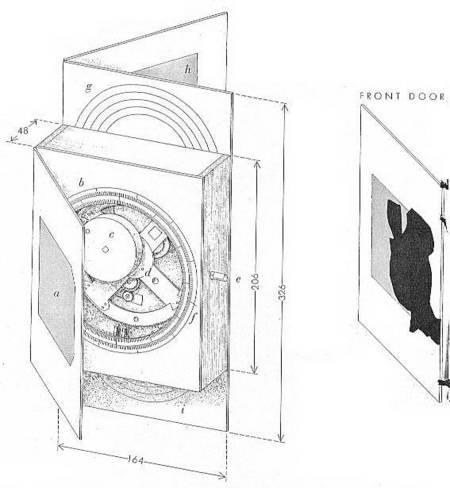

Antikythera mechanism 2 - line drawing of the mechanism in situ

Derek De Solla Price, 1959

From the evidence of the fragments one can get a good idea of the appearance of the original object. Consisting of a box with dials on the outside and a very complex assembly of gear wheels mounted within, it must have resembled a well-made 18th-century clock. Doors hinged to the box served to protect the dials, and on all available surfaces of box, doors and dials there were long Greek inscriptions describing the operation and construction of the instrument. At least 20 gear wheels of the mechanism have been preserved, including a very sophisticated assembly of gears that were mounted eccentrically on a turntable and probably functioned as a sort of epicyclic or differential, gear-system.

For a broader introduction to the Antikyhera mechanism - see the entry in this section entitled simply - Antikythera mechanism 1. Antikythera mechanism 2  - line drawing of the mechanism in situ - Antikythera Mechanism - Line Drawing
